3000 Rpm 3 Phase Brushless DC Motor Nema 24 48V 377W For BLDC Driver 750W DC24V ~ DC48V Set

Product Categories

CHANGZHOU JKONGMOTOR CO.,LTD

Contact Now

Name: 3000 Rpm 3 Phase Brushless DC Motor Nema 24 48V 377W For BLDC Driver 750W DC24V DC48V Set
Brand: Jkongmotor
Price: 1 USD

Place of Origin : Jiangsu, China (Mainland)

Brand Name : Jkongmotor

Model Number : JK60BLS04 & JKBLD750

Certification : CE, ROHS,ISO9001

Price : US $77.5 -108 / Sets | 2 Unit/Units (Min. Order)

MOQ : 3-10pcs

Payment Terms : T/T , paypal , Western Union, L/C

Supply Ability : 30000pcs/month

Delivery Time : For samples , 7-15 days / For batch , 15-25days

Packaging Details : with export carton . big quantity with pallet

Phase : 3-phase

Holding Torque : 1.2N.M

Current / Phase : 9.5A

Motor length : 141mm

voltage range : 48V

stepper driver model : JKBLS750

Usage : Home Appliance,Fan,Electric Bicycle,Car,Boat

Type : Brushless DC Motor

MOQ : 10pcs

Contact Now

NEMA24 48V 377W 3000RPM 3Phase Brushless Dc Motor & Bldc Driver 750W DC24V ~ DC48V Set

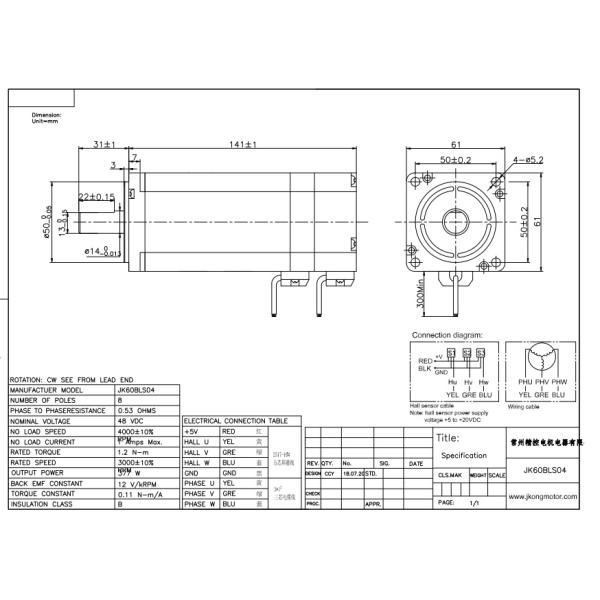

JK60BLS04 Drawing:

Products of special request can be made according to the customer request !

JKBLS750 Specification:
