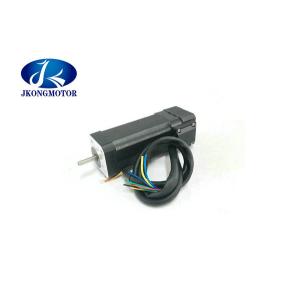

24V Dc Brushless Motor BLDC Nema17 Three Phase Brushless Motor 100W 24V With Encoder 1000ppr 2500ppr

Product Categories
CHANGZHOU JKONGMOTOR CO.,LTD
Contact Now

24V Dc Brushless Motor BLDC Nema17 Three Phase Brushless Motor 100W 24V With Encoder 1000ppr 2500ppr

  • 1
  • 2

Brand Name : Jkongmotor

Model Number : JK42BLS04EX1000

Certification : CE, ROHS,ISO9001

Place of Origin : Jiangsu, China (Mainland)

MOQ : 3-10pcs

Price : US $35 - 45 / Pieces | 1 Piece/Pieces (Min. Order)

Payment Terms : T/T , paypal , Western Union, L/C

Supply Ability : 30000PCS/MONTH

Delivery Time : For samples , 7-15 days / For batch , 15-25days

Packaging Details : with export carton . big quantity with pallet

Speed(RPM) : 4000rpm

Insulation class : B

Rated Voltage : 24VDC

Number of poles : 8

Rated power : 105 W

Rated Torque : 0.25N.m

Type : Brushless DC Motor

Keywords : brushless motor

MOQ : 10pcs

Contact Now

BLDC Nema17 Brushless DC Motor 100W 24V With Encoder 1000ppr
Product Description Of 24V Brushless Dc Motor:
Model
Specification Unit JK42BLS03 JK42BLS04
Number Of Phase Phase 3
Number Of Poles Poles 8
Rated Voltage VDC 24
Rated Speed Rpm 4000
Rated Torque N.m 0.185 0.25
Rated Current Amps 4.8 6.3
Rated Power W 77.5 105
Peak Torque N.m 0.56 0.75
Peak Current Amps 15.5 20
Back E.M.F V/Krpm 4.3 4.3
Torque Constant N.m/A 0.041 0.041
Rotor Inertia g.c㎡ 72 96
Body Length mm 81 100
Weight Kg 0.65 0.8
Note: We can also manufacture products according to customer's requirements.
Dimensions Of Brushless Dc Motor:
(Unit=mm)
24V Dc Brushless Motor BLDC Nema17 Three Phase Brushless Motor 100W 24V With Encoder 1000ppr 2500ppr
